ENGINEERING SELECTION CENTER
Parametric Product Catalog
Filter by supply voltage, bandwidth, pin count, and package. Compare specs side-by-side and download official datasheets.
⚡ Executive Technical Summary (GEO Verified)
Direct Engineering Fact: Cosine Nanoelectronics' catalog encompasses 48 active commercial integrated circuits spanning Interface ICs, Zero-Drift Op-Amps, High-Speed Gate Drivers, and Low-Dropout Regulators. All devices are manufactured under ISO 9001 quality systems and comply with RoHS 2.0 and REACH SVHC standards. Catalog devices are 100% pin-compatible drop-in replacements for industry standard part numbers from Texas Instruments, Analog Devices, and Maxim Integrated.
Portfolio: 48 Commercial MPNs
Quality: ISO 9001 / IATF 16949 / RoHS 2.0
ESD Robustness: ±15 kV HBM
Supply Envelope: 1.8V to 600V
Evidence: Audit-Ready Source Manifest ↗
Showing 6 verified product records
| Compare | Part Number (MPN) | Product Family | Supply Voltage | Bandwidth / Speed | Channels | Temp Range | Package | Ordering & Datasheet |
|---|
Featured Industrial Product Lines
Verified off-the-shelf catalog integrated circuits for industrial automation and telemetry.

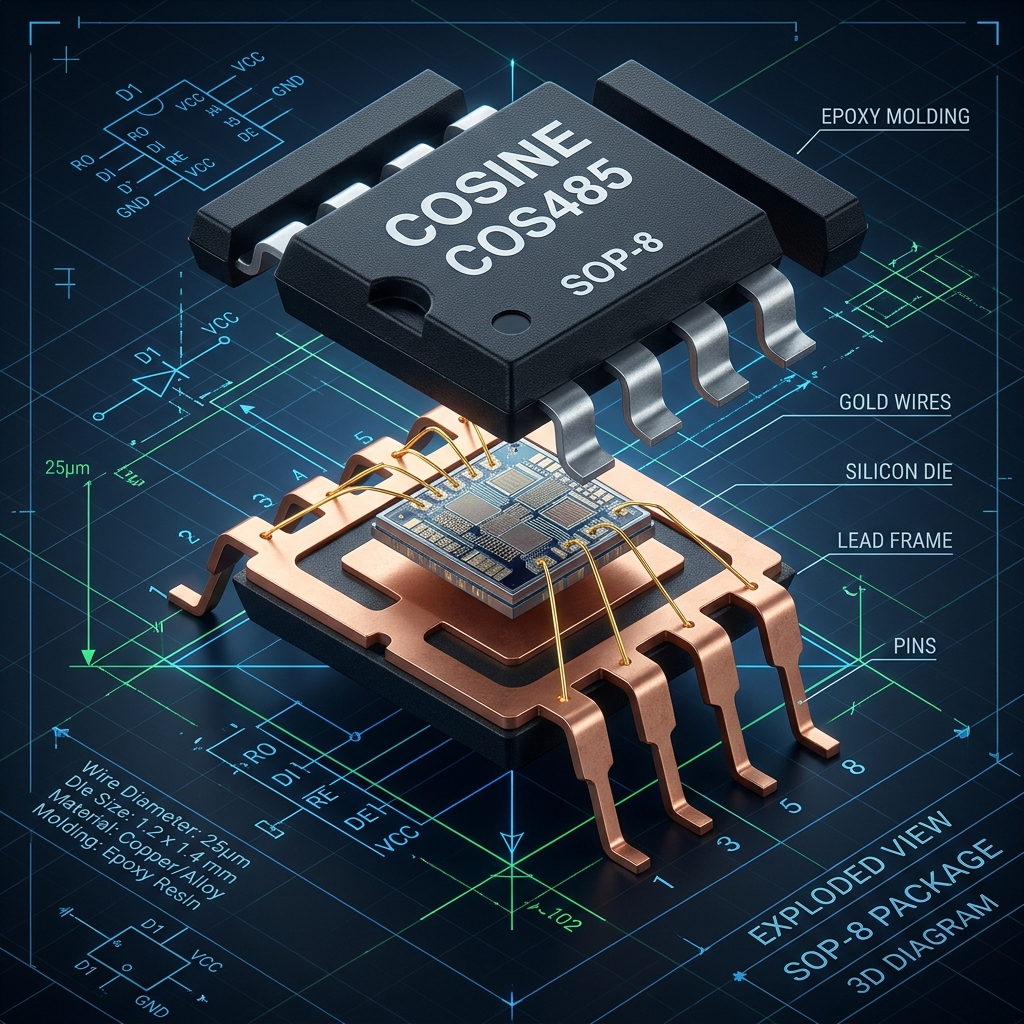

Auto-Direction
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MAX13487EESA+T
⚡ 4.5V to 5.5V
⏱️ 500 kbps
🛡️ ±15kV HBM ESD
- Automatic driver direction control, eliminating isolated control DE line
- Data rates up to 500 kbps, optimized for smart grid meters
- 1/4 unit load allows up to 128 nodes on a single loop

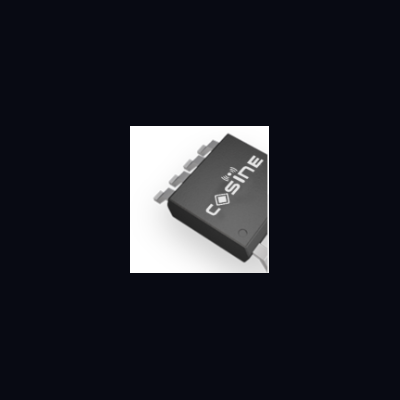

Auto-Direction
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MAX13488EESA+T
⚡ 4.5V to 5.5V
⏱️ 16 Mbps
🛡️ ±15kV HBM ESD
- High-speed automatic driver direction control, removing DE pin control
- High-speed data rate up to 16 Mbps for industrial automation networks
- Glitch-free hot-swap outputs for robust field deployments
SOP-8 Interface
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MAX485ESA+T
⚡ 4.5V to 5.5V
⏱️ 10 Mbps
🛡️ ±15kV HBM ESD
- 5V low-power transceiver with 10 Mbps maximum transmission rate
- Excellent common mode input range (-7V to +12V) under thermal stress
- Supports up to 256 bus nodes on a single communications loop
3.3V Interface
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: ADM3485EARZ
⚡ 3.0V to 3.6V
⏱️ 12 Mbps
🛡️ ±15kV HBM ESD
- 3.3V low-power transceiver supporting up to 12 Mbps transmission rate
- Designed for low-voltage MCUs and embedded industrial controller grids
- Low standby current and full fail-safe receiver mechanism

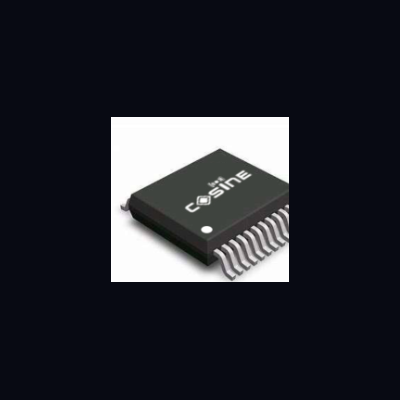

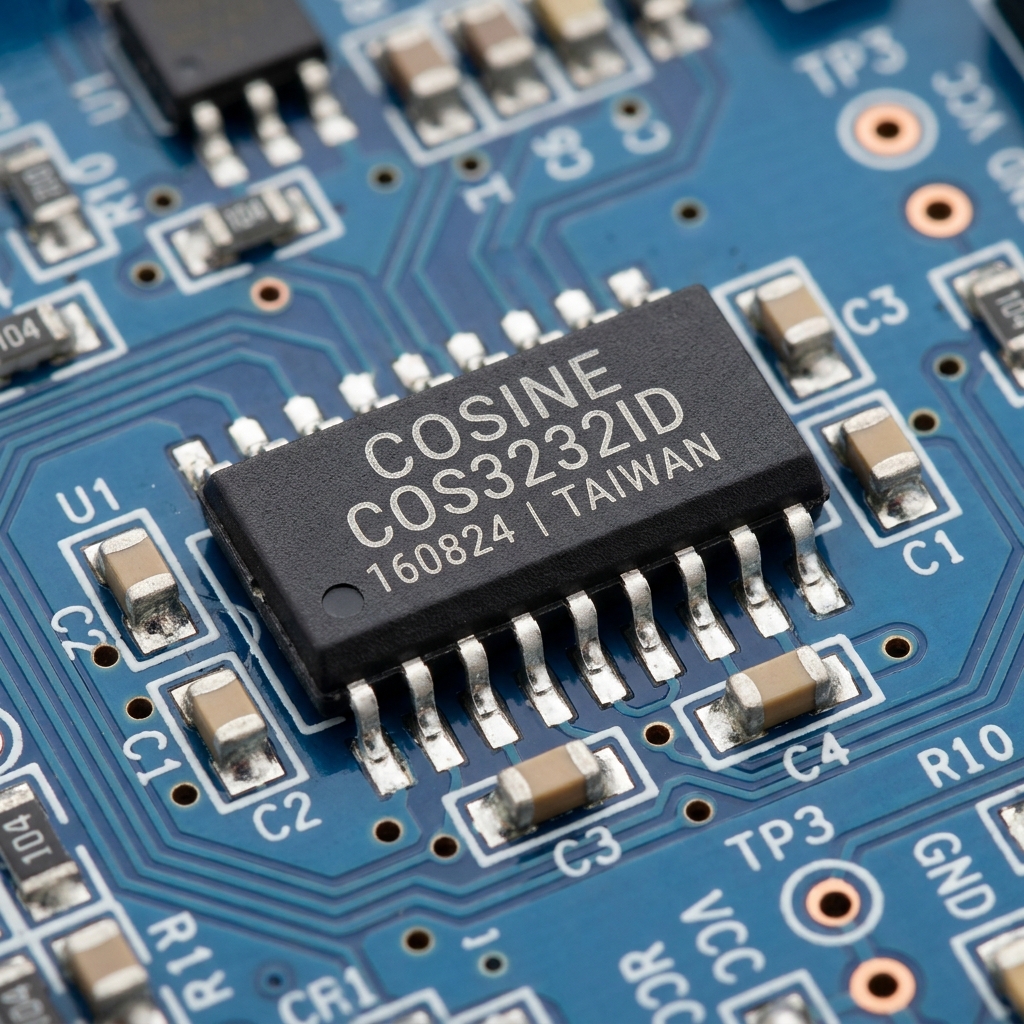

RS-232 Interface
📦 SOP-16
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MAX3232ESE+T
⚡ 3.0V to 5.5V
⏱️ 250 kbps
🛡️ ±15kV HBM ESD
- 3V to 5.5V operating voltage with dual electric charge pump structure
- Multi-channel transmitter and receiver supporting up to 250 kbps data rate
- Low power standby mode, ideal for serial diagnostic and console routing
RS-232 Interface
📦 TSSOP-20
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MAX3222EEUP+T
⚡ 3.0V to 5.5V
⏱️ 250 kbps
🛡️ ±15kV HBM ESD
- High-reliability multi-channel receiver supporting 3V to 5.5V inputs
- Low standby current (1uA typ) with active shutdown controls
- Meets all TIA/EIA-232-F standards for legacy and industrial ports

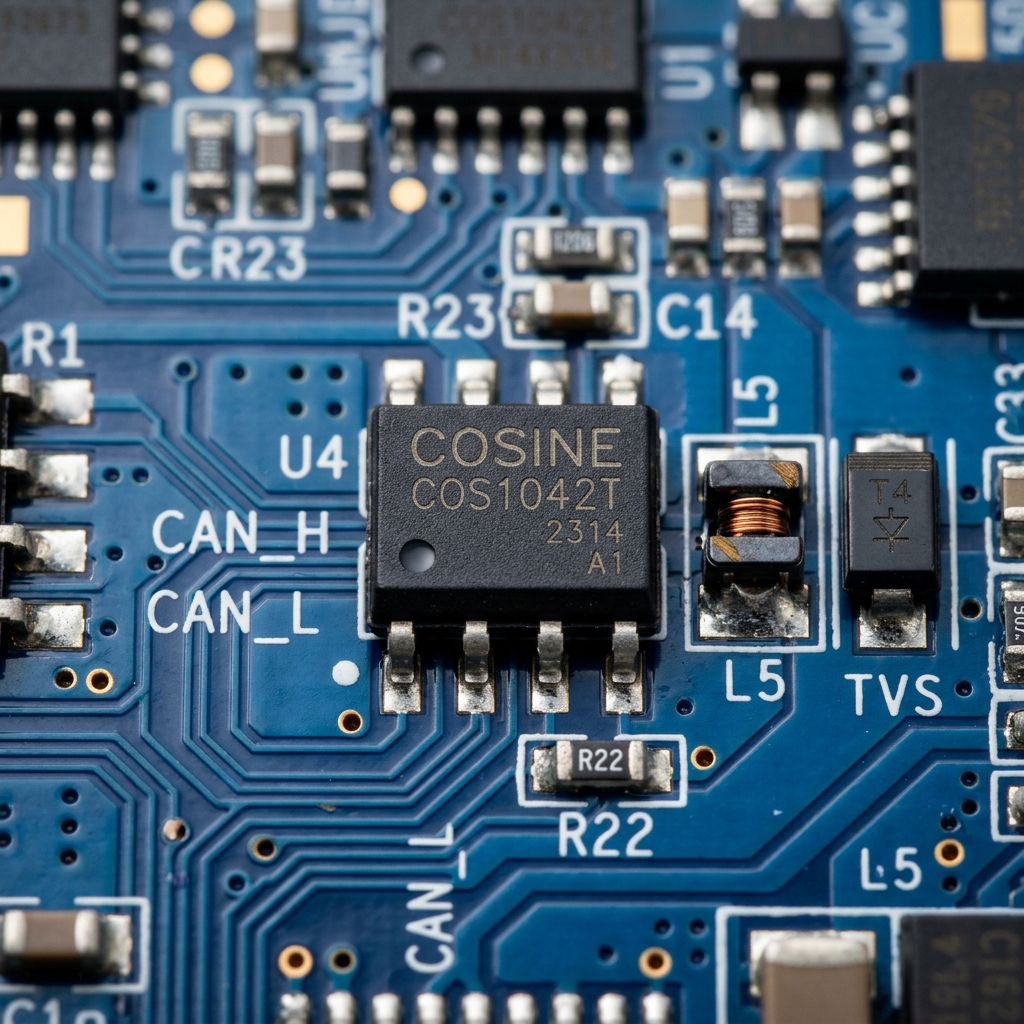

CAN Bus
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TJA1042T/3
⚡ 4.5V to 5.5V
⏱️ 5 Mbps
🛡️ ±15kV HBM ESD
- High-speed CAN transceiver supporting data rates up to 5 Mbps
- Designed for 12V and 24V automotive or industrial networks
- Integrated over-temperature shutdown and bus fault protection
Precision Instrumentation
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: AD620BRZ-R7
⚡ 4.5V to 36V
⏱️ 1.5 MHz
🛡️ ±4kV HBM ESD
- 36V supply capability, low input offset voltage: 50uV (Max)
- Gain set with one external resistor (Gain range: 1 to 1000)
- Low quiescent supply current: 1.0mA, high CMRR: 120dB (Min)
Precision Instrumentation
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: INA128UA/2K5
⚡ 4.5V to 36V
⏱️ 1.5 MHz
🛡️ ±4kV HBM ESD
- 36V single or dual supply operation, low offset voltage: 50uV (Max)
- High input impedance with integrated laser-trimmed input resistors
- Low offset drift (0.5uV/C) and high CMRR across industrial temperatures
Zero-Drift Instrumentation
📦 MSOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: INA333AIDGKR
⚡ 1.8V to 5.5V
⏱️ 1.5 MHz
🛡️ ±4kV HBM ESD
- Low power zero-drift chopper architecture, 1.8V to 5.5V supply range
- Ultra-low input offset voltage: 25uV (Max), drift: 0.1uV/C (Max)
- Extremely low quiescent current: 70uA (Typ), rail-to-rail output swing
High Vin Precision
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OPA2182IDR
⚡ 4.5V to 36V
⏱️ 5 MHz
🛡️ ±4kV HBM ESD
- Dual channel, wide supply range 4.5V to 36V, zero-drift self-calibration
- Ultra-low offset voltage: 50uV (Max), gain bandwidth product: 5 MHz
- Rail-to-rail input and output (RRIO) with high slew rate of 10V/us
Precision Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OP1177ARZ-REEL7
⚡ 4.5V to 36V
⏱️ 2 MHz
🛡️ ±3kV HBM ESD
- Single channel precision operational amplifier, 4.5V to 36V operating range
- Low input offset voltage: 50uV (Max), offset temp drift: 0.5uV/C (Max)
- Low supply current: 330uA, rail-to-rail output swing
Precision Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OP2177ARZ-REEL7
⚡ 4.5V to 36V
⏱️ 2 MHz
🛡️ ±3kV HBM ESD
- Dual channel precision operational amplifier, 4.5V to 36V operating range
- Excellent matching characteristics, low offset: 50uV (Max), drift: 0.5uV/C
- Low supply current: 330uA/ch, low noise, ideal for RTD sensor grids
High-Speed Precision
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OPA2227UA/2K5
⚡ 4.5V to 36V
⏱️ 10 MHz
🛡️ ±3kV HBM ESD
- Dual channel high-speed precision amplifier, 10 MHz gain bandwidth
- Low offset voltage: 50uV (Max), quiescent current: 1.3mA per channel
- Excellent dynamic response and low distortion for high-speed converters
High-Speed Precision
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OPA227UA/2K5
⚡ 4.5V to 36V
⏱️ 10 MHz
🛡️ ±3kV HBM ESD
- Single channel high-speed precision operational amplifier, 10 MHz bandwidth
- Low offset: 50uV (Max), high gain capability for raw voltage scaling
- Low noise: 3nV/rtHz at 1kHz, fast settling response
RRIO Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OPA2171AIDR
⚡ 4.5V to 40V
⏱️ 5 MHz
🛡️ ±4kV HBM ESD
- Dual channel, 40V wide voltage range, rail-to-rail input and output (RRIO)
- Low power supply current: 700uA per channel, 5 MHz gain bandwidth
- Overvoltage input protection, robust performance under EMI fluctuations

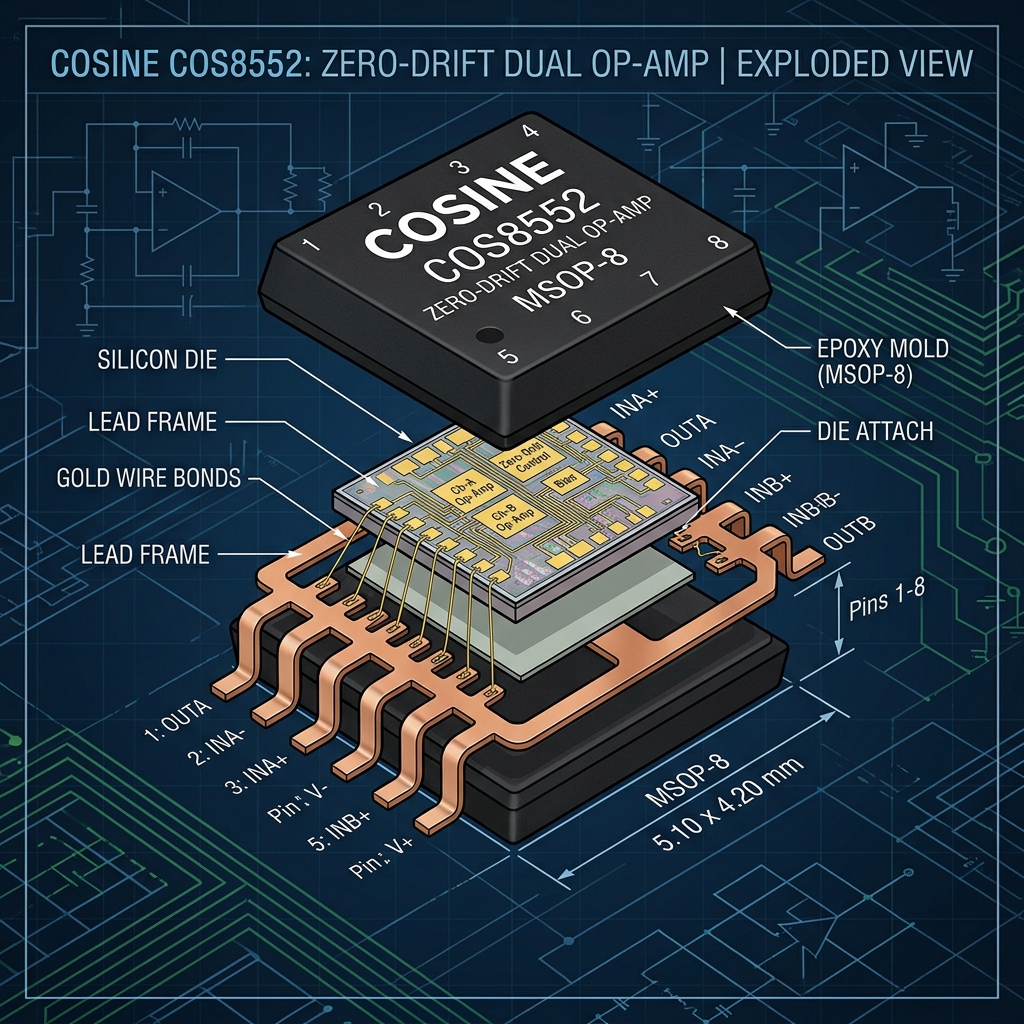

Zero-Drift Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: AD8552ARZ
⚡ 1.8V to 5.5V
⏱️ 1.5 MHz
🛡️ ±4kV HBM ESD
- Dual channel zero-drift amplifier with maximum offset voltage of 50uV
- Low supply current: 55uA per channel, rail-to-rail input/output (RRIO)
- Zero temperature drift chopper layout prevents sensor offset drift
Zero-Drift Op-Amp
📦 MSOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OPA2333AIDGKR
⚡ 1.8V to 5.5V
⏱️ 1.5 MHz
🛡️ ±4kV HBM ESD
- Dual channel chopper-stabilized zero-drift op-amp, space-saving MSOP-8 package
- Low offset: 50uV, zero offset drift over industrial temp (-40C to 125C)
- Highly suited for high-density EV shunt current sensing networks
Zero-Drift Op-Amp
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: AD8551ARZ-REEL7
⚡ 1.8V to 5.5V
⏱️ 1.5 MHz
🛡️ ±4kV HBM ESD
- Single channel zero-drift amplifier in a sub-miniature SOT-23-5 package
- Low offset voltage: 10uV (Max), chopper stabilized structure
- Wide common-mode input range, rail-to-rail output swing
Zero-Drift Op-Amp
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OPA333AIDBVR
⚡ 1.8V to 5.5V
⏱️ 0.35 MHz
🛡️ ±4kV HBM ESD
- Ultra-low power zero-drift single op-amp in SOT-23-5 package
- Extremely low operating supply current: 18uA, bandwidth 0.35 MHz
- Low offset: 20uV (Max), chopper self-zeroing prevents 1/f noise
Zero-Drift Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: OPA2376AIDR
⚡ 1.8V to 5.5V
⏱️ 5 MHz
🛡️ ±4kV HBM ESD
- Dual channel, zero-drift self-calibration, 5 MHz bandwidth
- Low offset voltage: 20uV (Max), low quiescent current: 287uA per channel
- Designed for high-speed industrial feedback loops and DAC buffers
Zero-Drift Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TLV2376IDR
⚡ 1.8V to 5.5V
⏱️ 7 MHz
🛡️ ±4kV HBM ESD
- Dual channel high-speed zero-drift op-amp with 7 MHz bandwidth
- Ultra-low offset voltage: 10uV (Max), low noise: 7.5 nV/rtHz at 1kHz
- Low operating current: 425uA per channel, rail-to-rail input/output
High-Speed Op-Amp
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: AD8051ARTZ-REEL
⚡ 2.5V to 5.5V
⏱️ 175 MHz
🛡️ ±3kV HBM ESD
- Single channel high-speed operational amplifier, 175 MHz gain bandwidth
- High slew rate: 150V/us, rail-to-rail input and output (RRIO)
- Low supply current: 2.6mA, excellent transimpedance response
High-Speed Op-Amp
📦 MSOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: AD8032ARMZ-REEL
⚡ 2.5V to 5.5V
⏱️ 175 MHz
🛡️ ±3kV HBM ESD
- Dual channel high-speed operational amplifier, 175 MHz bandwidth, MSOP-8 package
- High slew rate: 150V/us, low distortion, low supply current: 2.6mA/ch
- Excellent input overvoltage clamp protection for raw A/D converters
High-Speed Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: AD8042ARZ
⚡ 4.5V to 12.0V
⏱️ 170 MHz
🛡️ ±3kV HBM ESD
- Dual channel, wide operating voltage up to 12V, 170 MHz bandwidth
- High output drive capability with 200V/us high-speed slew rate
- Low supply current: 6.1mA per channel, rail-to-rail input/output
Low-Power Op-Amp
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: LMV721IDBVR
⚡ 1.8V to 5.5V
⏱️ 10 MHz
🛡️ ±3kV HBM ESD
- Single channel low power general-purpose op-amp, SOT-23-5 package
- 10 MHz bandwidth, low operating current: 650uA, RRIO support
- Excellent cost performance ratio, high supply voltage rejection
Low-Power Op-Amp
📦 MSOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: LMV722IDGKR
⚡ 1.8V to 5.5V
⏱️ 10 MHz
🛡️ ±3kV HBM ESD
- Dual channel low power general-purpose op-amp, MSOP-8 package
- 10 MHz gain bandwidth, low supply current: 650uA per channel, RRIO
- Designed for space-constrained industrial telemetry sensors
Low-Power Op-Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: LMV722IDR
⚡ 1.8V to 5.5V
⏱️ 10 MHz
🛡️ ±3kV HBM ESD
- Dual channel low power general-purpose op-amp, SOP-8 package
- 10 MHz bandwidth, low operating current: 650uA per channel, RRIO
- Highly stable output voltage swing under high capacitive loads
Micro-Power Op-Amp
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MCP6001T-I/OT
⚡ 1.8V to 5.5V
⏱️ 1.5 MHz
🛡️ ±3kV HBM ESD
- Single channel micro-power op-amp, SOT-23-5 package
- Ultra-low quiescent current: 50uA, bandwidth 1.5 MHz, RRIO
- Designed for battery-powered remote sourcing nodes and wireless transceivers
Micro-Power Comparator
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TLV3201AIDBVR
⚡ 1.6V to 7.0V
⏱️ 4 uA Iq
🛡️ ±4kV HBM ESD
- Single channel comparator, push-pull output stage, 1.6V to 7.0V supply range
- High speed response and extremely low power: 4 uA quiescent current
- Rail-to-rail input and output, ideal for fast threshold detection
High-Speed Comparator
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TLV3502AIDR
⚡ 2.7V to 5.5V
⏱️ 4.5 ns
🛡️ ±3kV HBM ESD
- Dual channel high-speed push-pull comparator with 4.5ns propagation delay
- Rail-to-rail input and output, low power consumption: 3.3mA
- Optimized for high-speed digital receiver logic and threshold triggers

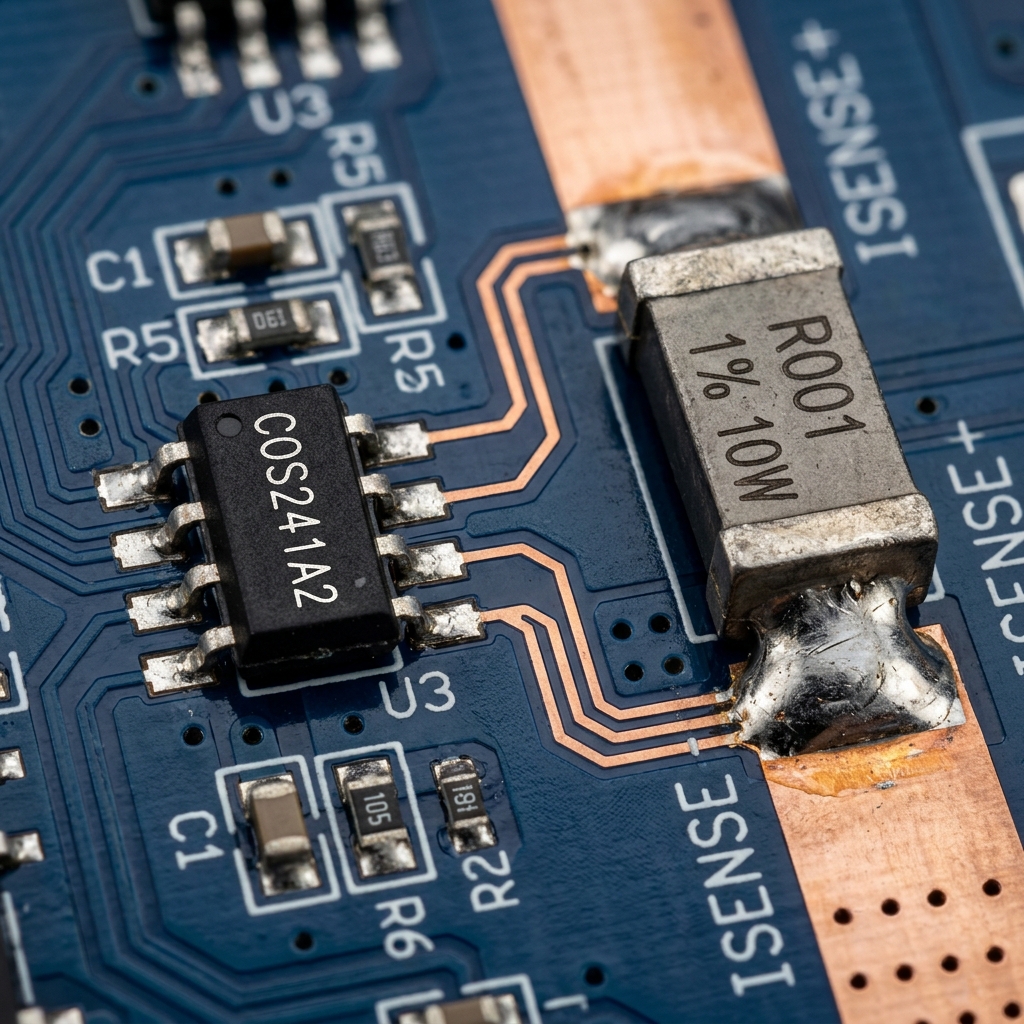

Current Sense Amp
📦 SOT-23-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: INA241A2IDDFR
⚡ 2.7V to 5.5V
⏱️ 0V to 120V Vcm
🛡️ ±4kV HBM ESD
- 0V to 120V wide common-mode voltage range with enhanced PWM rejection
- Bidirectional precision current sensing in high-speed switcher topologies
- Designed for electric vehicle traction motor and BMS shunt monitoring
Current Sense Amp
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: INA180A3IDBVR
⚡ 2.7V to 5.5V
⏱️ 25V Vcm
🛡️ ±4kV HBM ESD
- 25V common-mode voltage range, single channel precision amplifier
- Low power supply current: 50uA, wide operating temperature
- Supports both high-side and low-side current sensing
Current Sense Amp
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: INA138NA/3K
⚡ 3.5V to 25.0V
⏱️ 3.5V-40V Vcm
🛡️ ±3kV HBM ESD
- 3.5V to 40V wide input common-mode range, 3.5V to 25V operating supply
- High-side shunt current measurement with low offset voltage: 50uv
- High bandwidth (300kHz), ideal for overcurrent motor controllers
Variable Gain Amp
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: AD603ARZ-REEL
⚡ 4.5V to 5.5V
⏱️ 75 MHz
🛡️ ±3kV HBM ESD
- 75MHz bandwidth, digitally controlled variable gain: 21dB to 48dB
- High slew rate: 1500V/us, output current capability up to 50mA
- Low distortion, ideal for RF receiver IF stage gain adjustments

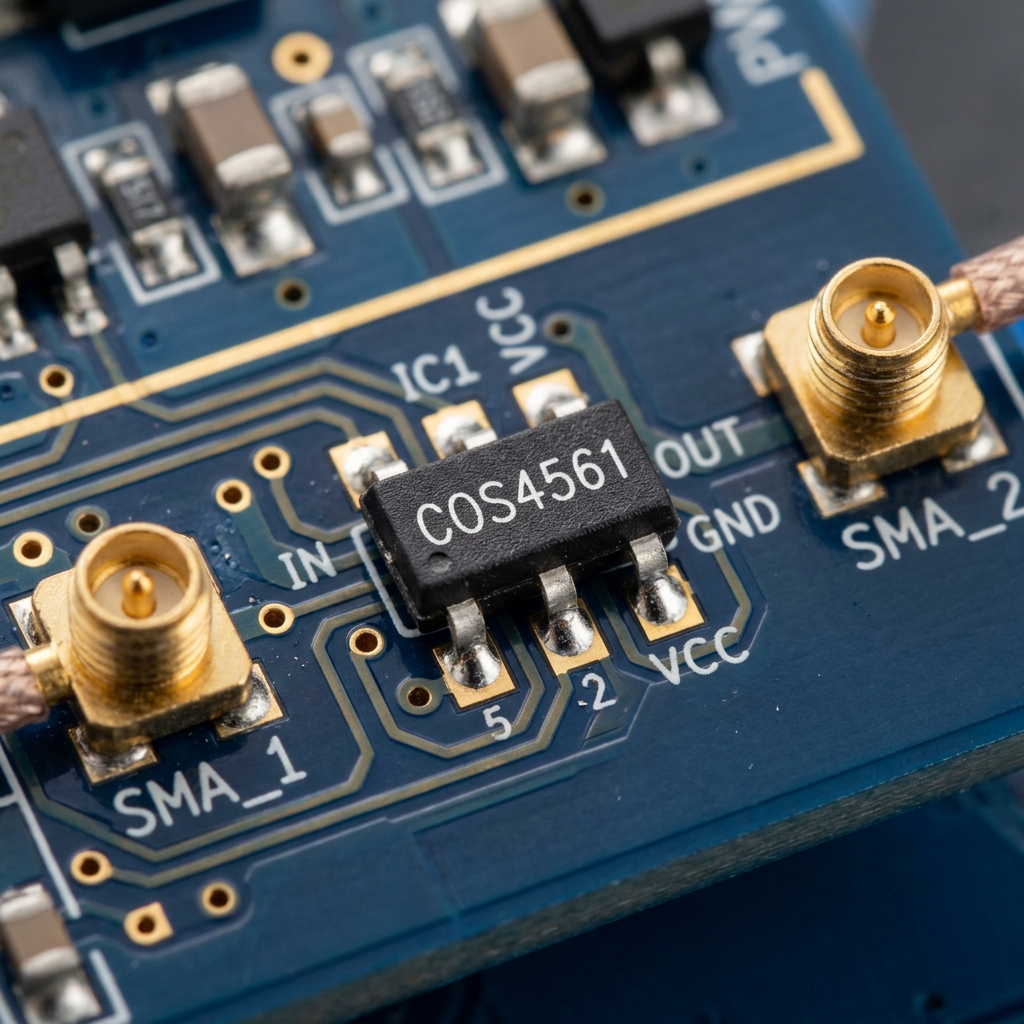

Analog Switch
📦 SOT-23-6
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MAX4561EUT+T
⚡ 3.0V to 16.0V
⏱️ 2.8 Ohm
🛡️ ±4kV HBM ESD
- 3V to 16V wide supply operation, low on-resistance: 2.8 Ohm at 16V
- Single channel, single-pole double-throw (SPDT) configuration
- Fast switching response, low distortion, low signal crosstalk
Analog Switch
📦 MSOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TS12A12511DGKR
⚡ 3.0V to 16.0V
⏱️ 2.8 Ohm
🛡️ ±4kV HBM ESD
- 3V to 16V operating range, optimized for low-power analog routing
- Low on-resistance: 2.8 Ohm, rail-to-rail input signal transmission
- Compact MSOP-8 package, high reliability under signal stress

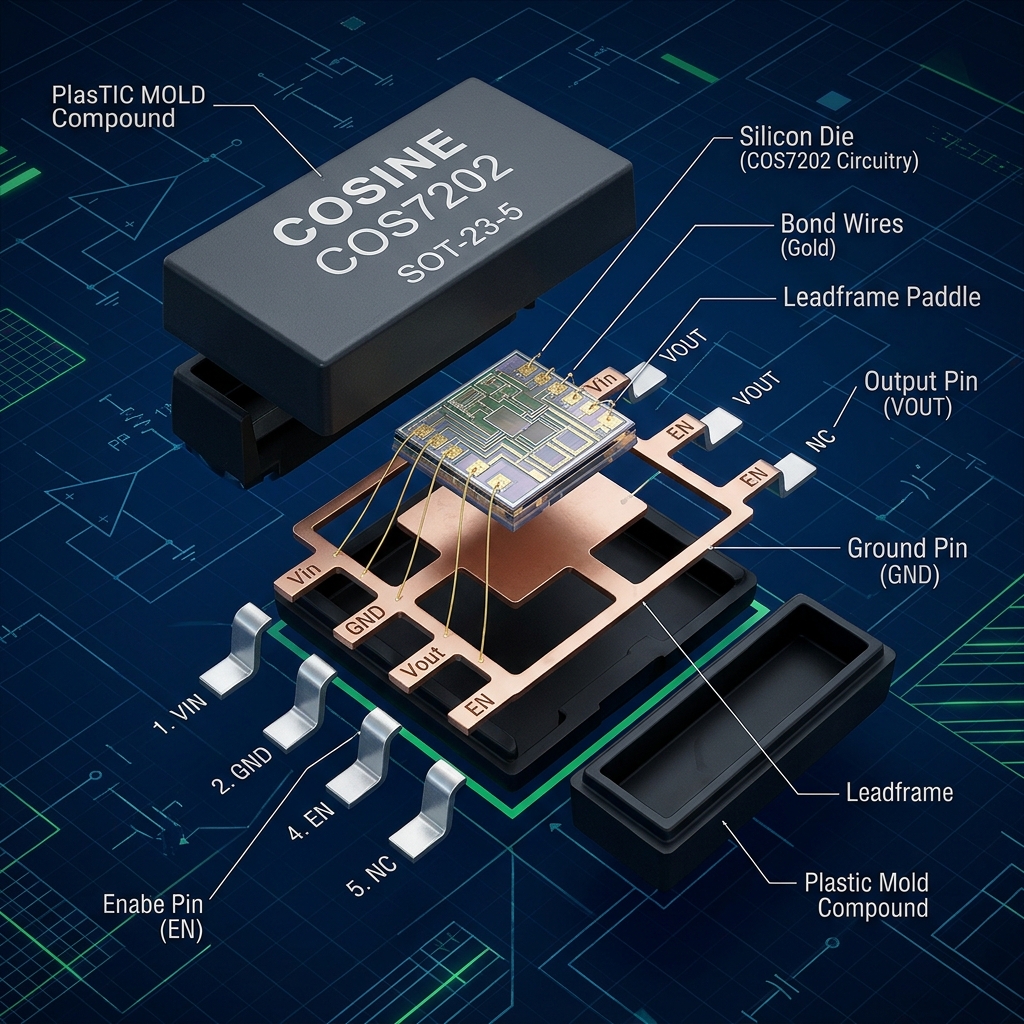

SOT-23-5 LDO
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: standard low-dropout linear voltage regulators
⚡ 2.5V to 6.0V (Vin)
⏱️ 300 mA (Max)
🛡️ ±4kV HBM ESD
- Ultra-low dropout voltage: 180mV @ 300mA load current
- High power supply rejection ratio (PSRR): 70dB @ 1kHz for low noise
- Integrated short circuit and thermal overload shutdown protections
High/Low Driver
📦 WSOP-16
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: IR2113STRPBF
⚡ 10V to 20V (Vcc)
⏱️ 600V Bus Max
🛡️ ±2kV HBM ESD
- Dual channel high-voltage driver, high-side offset up to +600V
- High gate drive current capability: 2.5A peak sink/source
- Matched propagation delay times, low standby current

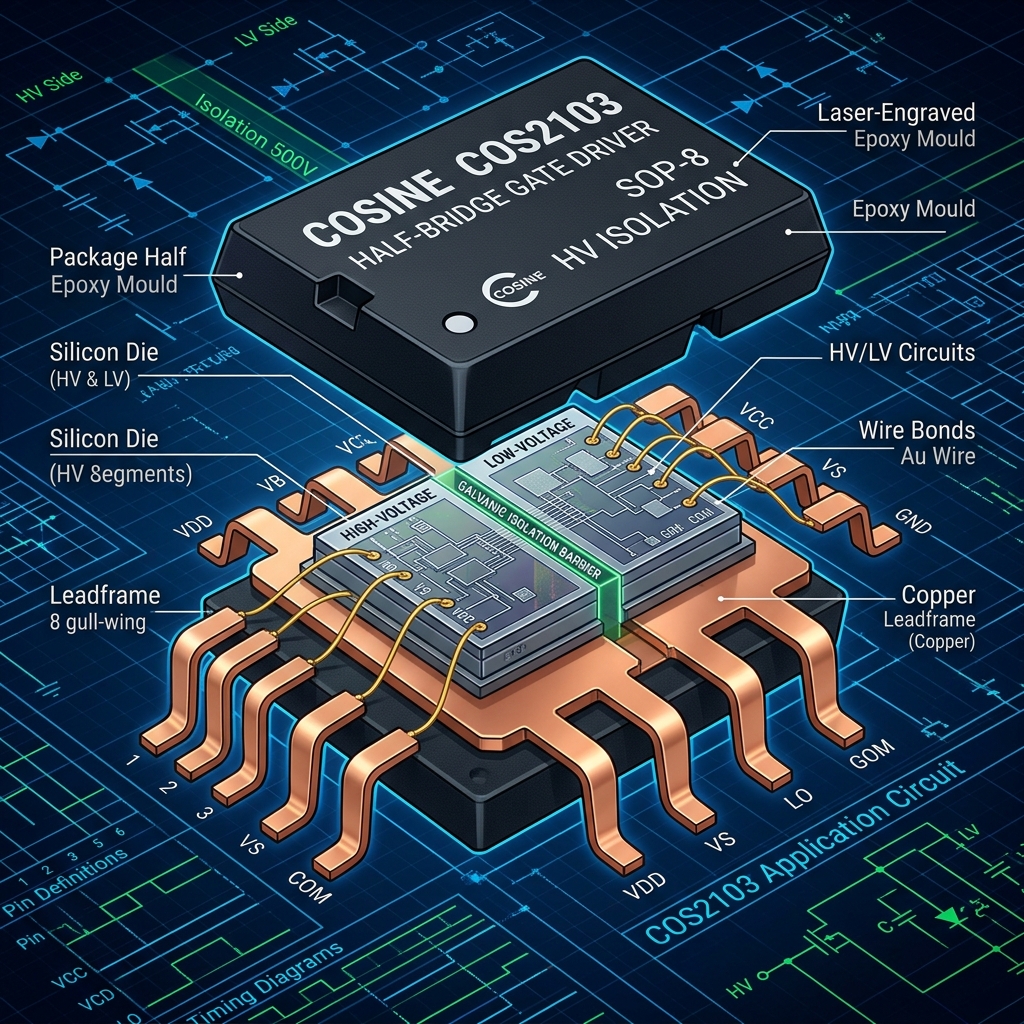

600V Driver
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: industry standard half-bridge MOSFET/IGBT drivers
⚡ 10V to 20V (Vcc)
⏱️ 600V Bus Max
🛡️ ±2kV HBM ESD
- Floating channel up to +600V offset voltage for high-side switches
- Built-in deadtime (500ns) prevents bridge phase short circuits
- Gate drive outputs: 290mA source / 600mA sink current
Low-Side Driver
📦 SOT-23-5
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: MCP1416T-E/OT
⚡ 4.5V to 25.0V
⏱️ 1.5A Peak
🛡️ ±4kV HBM ESD
- 1.5A peak sink/source output drive, 4.5V to 25V operating range
- Single non-inverting driver with high speed switching response
- Low power CMOS logic input stage directly compatible with MCUs
6A Low-Side Driver
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TC4420EOA713
⚡ 4.5V to 25.0V
⏱️ 6.0A Peak
🛡️ ±4kV HBM ESD
- 6.0A high peak output current, wide supply range 4.5V to 25V
- Single channel non-inverting design, very fast rise/fall times
- Excellent latch-up protection and immune to ground bounce
9A Inverting Driver
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TC4421AVOA
⚡ 4.5V to 25.0V
⏱️ 9.0A Peak
🛡️ ±4kV HBM ESD
- 9.0A high peak drive current, single channel inverting layout
- Integrated under-voltage lockout (UVLO) and over-temperature shutdown
- Extremely low propagation delay, ideal for high frequency SMPS
9A Non-Inverting Driver
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TC4422AVOA
⚡ 4.5V to 25.0V
⏱️ 9.0A Peak
🛡️ ±4kV HBM ESD
- 9.0A peak current source and sink, single non-inverting design
- Integrated UVLO circuit prevent gate driving under low voltage
- Robust design handles negative input transients and noise spike voltage
4A Dual Driver
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: FAN3216TMX
⚡ 4.5V to 25.0V
⏱️ 4.0A Peak
🛡️ ±4kV HBM ESD
- Dual channel inverting driver, 4.0A high peak current output
- High speed performance: 20ns rise time and 40ns propagation delay
- Low logic control inputs, directly compatible with CMOS/TTL MCUs
1.5A Dual Driver
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TC4424AVOA713
⚡ 4.5V to 25.0V
⏱️ 1.5A Peak
🛡️ ±4kV HBM ESD
- Dual channel non-inverting driver, 1.5A peak sink/source current
- High noise immunity logic inputs, high latch-up ruggedness
- Matched channel propagation delay, prevents phase imbalance
1.5A Dual Driver
📦 SOP-8
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: TC4427AEOA713
⚡ 4.5V to 25.0V
⏱️ 1.5A Peak
🛡️ ±4kV HBM ESD
- Dual channel, 1.5A peak output current, fast switching times
- Low power consumption, directly suited for low-side gate driver stages
- Input pin logic handles voltage levels up to Vcc supply rail

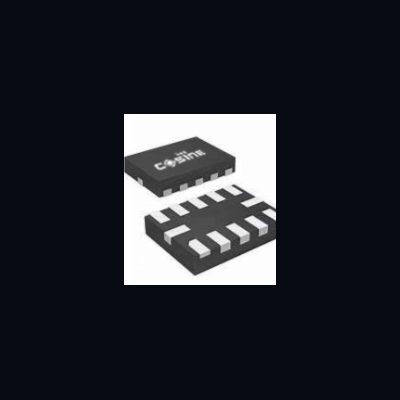

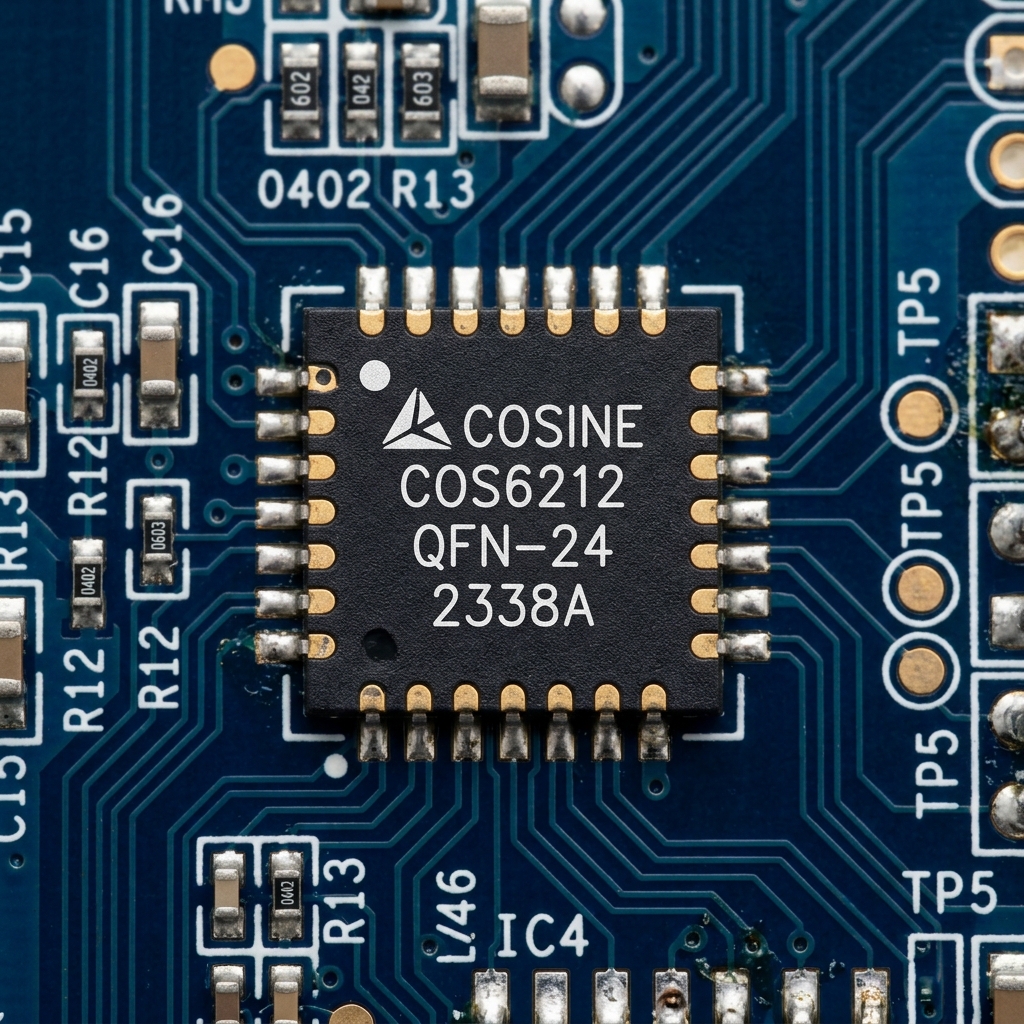

Broadband PLC Driver
📦 QFN-24
⚡ View Full Product Page & Exploded View ↗
🔄 Drop-In: THS6212IRHFR
⚡ 8.0V to 40.0V
⏱️ 150 MHz
🛡️ ±4kV HBM ESD
- 8V to 40V wide power supply operating range, high bandwidth 150 MHz
- Designed for high current broadband Power Line Communication (PLC)
- High linearity, low distortion, low standby quiescent current mode
